Fleet - Motor Tug

M.T. MEHRAN - Outline Specification
Classification Notation B.V. – TUG (INTERNATIONAL)
Navigation Areas Unrestricted (International)
Flag Pakistan
Year Built 2003
M.T. MEHRAN

Dimensions & Capacities

Length O.A. (M) 26.80
Beam MLD. (M) 8.00
Depth MLD. (M) 3.80
Design Draft (M) 3.00
Max. Draft (M) ~3.20
GRT 233.00
Fuel Oil Tank (MT) ~155.00
Fresh Water Tank (MT) ~35.00

Main Machinery & Propulsion Unit

Main Engine BHP 1,600 x 2 @1,800rpm
Quantity Two
Make Cummins-USA
Model Cummins KTA50-M2
Marine Gensets 45kW/3ph/220, 380V/50Hz
Quantity Two
Make Cummins-USA
Model Cummins 45MXDA
Marine Red. Gearbox ZF-MASSON RSL1250
Quantity Two
Make ZF MASSON-Germany
Reduction Ratio 6.01: 1
Propeller Fixed pitch screws with kort nozzle two sets
Electric-hydraulic Steering Gear Rexroth Germany, 5 T-M
Oily Water Seperator YSCZ-0.25DM
Fuel Type Marine Diesel Oil

Main Radio & Nav. Equip.

GMDSS SSB ICOM IC-M710
VHF ICOM IC-M59
GPS KODEN KGP-913
AutoPilot SIMRAD AP-45
WeatherFax FURUNO Fax-207
Radar JRC JMA2254
Radar Responder MCMURDO RT9
Electronic Whistle E3M-24
Mag. Reflector CPT-165
Compass Panel Type LCT-165
Compass SoundPower VSZ3-8k
Telephone Echo Sounder Marinetek MAX6
EPIRB MCMURDO E3
Walkie Talkie ICOM IC-GM1500E

Main Towing Equip. & Deck Machinery

  • Butterfly Short Shank Towing Hook 50MT SWL Trial load 125MT (electro-hydraulic quick release)
  • Towing Wire: φ46mm x 600M
  • Electro-Hydraulic Towing Winch: 50MT Braking Load (electro-hydraulic quick release)
  • Bow Towing Bitt: 80MT SWL
  • Aft Towing Bitt: 135MT SWL
  • Electric Windlass18.23kN-20.5mm
  • Electric Capstan 6/2.5kw-φ300mm
  • Anchor & Anchor Chain: Hall’s anchor 350kg x 2 Anchor chain φ20.5mm x 192.5M

Main Fire Fighting & Life Saving Equip

  • In compliance with SOLAS and flag country fire-fighting & life-saving facilities requirement As per DNV Rules CO2 Room requirement
  • External Fire Fighting Monitor: ~400 cbm/hr, range>100M
  • Portable Fire Extinguisher: 8 x 9kg foam, 8 x 3 kg CO2, 4 x 8kg Dry Powder; 1x 45 L Foam Fire Extinguisher (cart-pushing); One set Fireman out-fit, etc.
  • Electric Fifi General Pump power: 36cbm/hr
  • Standby Fifi Pump power: 36cbm/hr
  • Emergency Motor Fifi Pump power: 36cbm/hr
  • International Standard type FiFi General connector

Air cooling system

Air-conditioners for wheelhouse, messroom. High-rated ventilator & marine fan for other crew cabin.

Accomodation & Galley

  • 2 x Senior Officer Cabin
  • 2 x 6 Berth Crew Member Cabin
  • Total Accommodation: 14
  • Freezer space (M3) : 2.5
  • Refrigerator (M3) : 2.5
  • 4 Hd Electric Stove (Incl. oven), etc.

Download

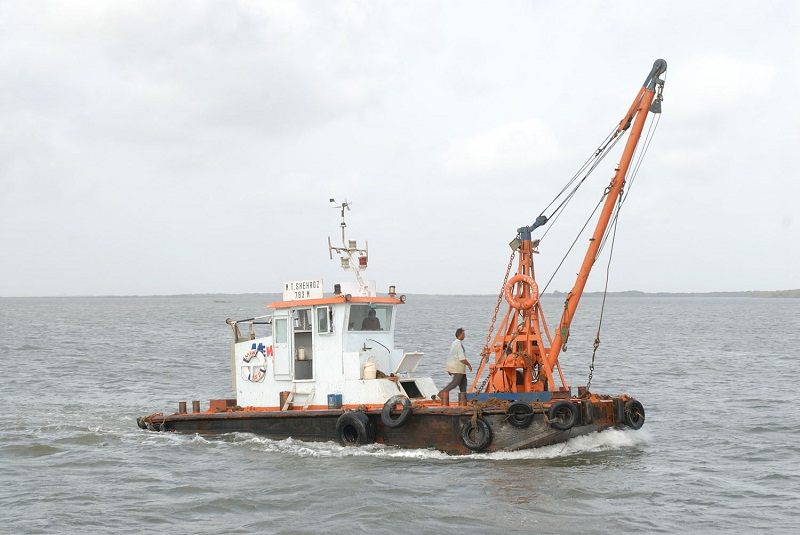

M.T. SHEHROZ - Outline Specification

Dimensions

Length 11.65 M
Breadth 4.68 M
Depth (M) 1.4 M
Draft
FWD 0.5 M
AFT 1.0 M
M.T. SHEHROZ

Main Machinery

Engine Make Caterpillar
Engine Model D-333 (Vertical)
Engine Power 300 Hp
Crane
Capacity 5 Tons
Generator
Lister 2 Cylinder
Power 30 KVA
